2023 Honda CRF300L Air Filter Replacement and Battery Access - Page 1
Article Last Updated: June 20, 2024Next

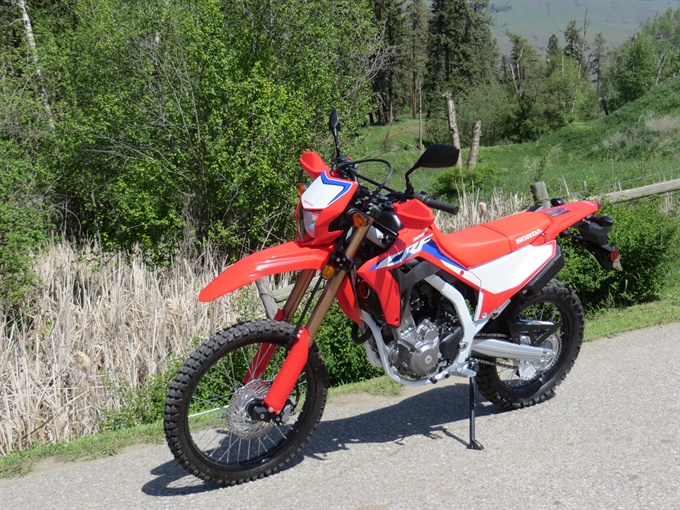

This is a guide to replacing the air filter and accessing the battery on a 2023 Honda CRF300L. It is based on the author’s observations and experience removing and reinstalling the air filter, and on accessing the battery on a 2023 Honda CRF300L; it is also based on information contained in the 2023 CRF300L Owner's Manual and the official Honda CRF300L Service Manual, 2021 (part no. 61K1T01) which covers model years 2021 - 2022 and models CRF300L/LA/LR/LRA. The author is not aware of any relevant mechanical changes to the CRF300L models for the model years 2023-2024, so this guide should apply to those as well. Check with a Honda dealer if in doubt or get the latest version of the service manual.
Read all of the instructions before beginning. It may be helpful to take photos prior to removing or repositioning parts to aid you later.
Use the correct tools for the job, and take your time.
Disclosure: While the author has attempted to provide correct and complete information, sometimes errors or omissions may occur. By using this document and following the procedures and advice below, the user assumes all risk and responsibility for injury or damage to their motorcycle. The author has been servicing motorcycles for many years (not as a profession) and is mostly self-taught (no formal training in motorcycle servicing). It is recommended that you consult the Honda CRF300L owner’s manual and/or service manual.
Supplies you may need
- rags and/or shop towels for cleaning in and around the air box
- silicone spray or grease for rubber grommets
Tools you need or may find helpful
- torque wrench accurate at 21 N.m (15 ft-lb) for the seat bolts
- 6 mm hex (Allen) bit for the seat bolts
- 5 mm hex (Allen) bit for the side cover, tank shroud and battery holder bolts
- 3/8-inch ratchet
- 6-inch extension for ratchet
- alternatively, you can use 5 and 6 mm hex (Allen) keys like the ones that came with the bike
- #2 Philips screw driver for the air box cover screws and the battery terminal bolts
- alternatively, you can use an 8 mm socket for the battery terminal bolts
- a 4 mm hex (Allen) key is useful for depressing the centre pin of the push rivets
Information from Honda CRF300L Service Manual (2021-2022)
Recommended service interval for air filter replacement19200 km (12000 mi). Service more frequently when riding in unusually wet or dusty areas.
Torque Specifications
Seat hook bolts: 21 N.m (15 lbf.ft)
Air cleaner cover screws: 1.2 N.m (0.9 lbf.ft)
Service Manual Instructions for replacing the air filter
The CRF300L Service Manual does not go into detail with respect to inspecting or replacing the air filter.
- Remove the seat.
- Remove the right side cover.
- Remove the air box cover.
- Release the tabs on the air filter and pull out the air filter.
- Install a new air filter if needed.
- Install the air box cover.
- Install the right side cover and seat.
The CRF300L Service Manual does not go into detail with respect to removing or installing the battery. Here are the 2023 CRF300L Owner's Manual instructions.
- Turn the ignition to the off position.
- Remove the seat.
- Remove the left side cover.
- Remove the left tank shroud.
- Remove the bolt for the battery holder and then remove the battery holder.
- Disconnect the negative terminal from the battery.
- Disconnect the positive terminal from the battery.
- Pull out the battery.
- To install the battery, reverse the above steps. Always connect the positive terminal first.
- Check the clock and adjust if necessary.
